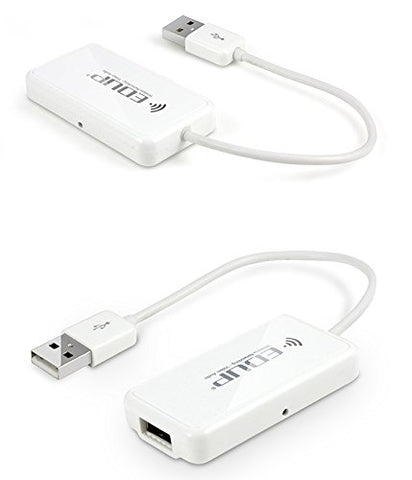

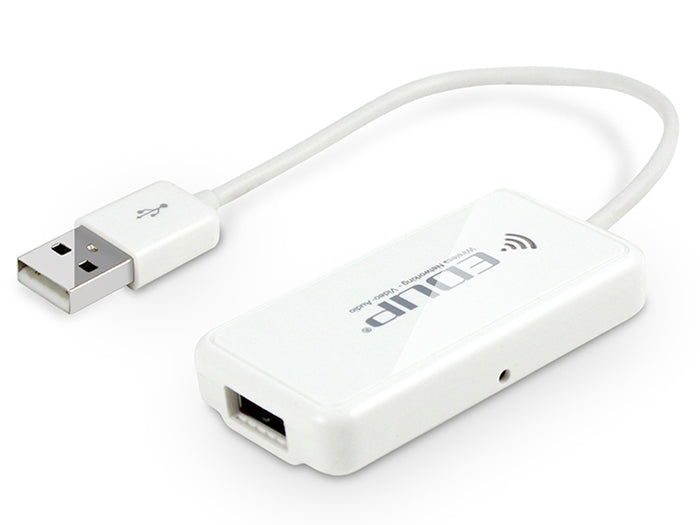

Wifi Disk (Hard Disk Portable)

Project Name : Wireless, WIFI Hard disk portable

Model Name : SAB-WiFi-USB

CPU : ModelRalink RT5350, Frequency MIPS24KEc 360MHZ

Flash : Model EN25Q64-104WIP, Capacity 8MByte SPI flash

SDRAM : Model M12L2561616A-6TG (SDRAM), Capacity 32MB (256Mbit)

Wi-Fi : Standard 802.11 b/g/n, Frequency 2.4GHz, Speed 72Mbps for 20MHz, 150Mbps for 40MHz

Interface : WiFi LED (Blue&Green) WiFi LED shows the system initiating state
Blue Flashing : The product is in booting
Blue : The product is ready
Green : Internet is ready
Integrated USB 2.0 cable Power supply for device
Reset button Factory default reset button
USB host interface USB 2.0
Support USB flash/HDD

Antenna : Signal strength 2dBi (WiFi component), 14dBm (Main chip)

Environmental Requirements : Operating Temperature : 5°C to 40°C
Non-Operating Temperature : 0°C to 60°C
Operating Humidity : 5% to 90% (Non-condensing)
Non-operating Humidity : 5% ~ 90 % (Non-condensing)

Product Dimension : 30mm L x 60mm W x11mm H

Emission (EMI), Safety & Other : FCC Class B

Certifications : CE
