SDI To HDMI Converter

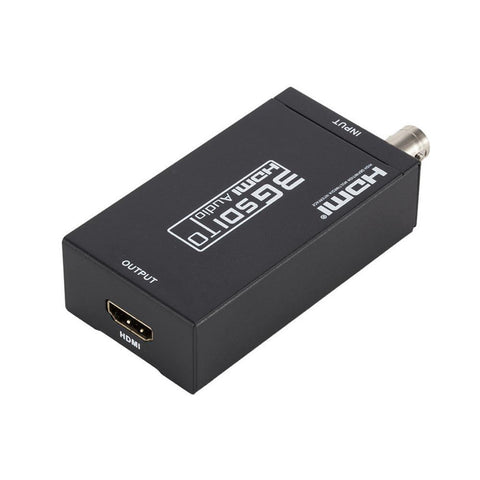

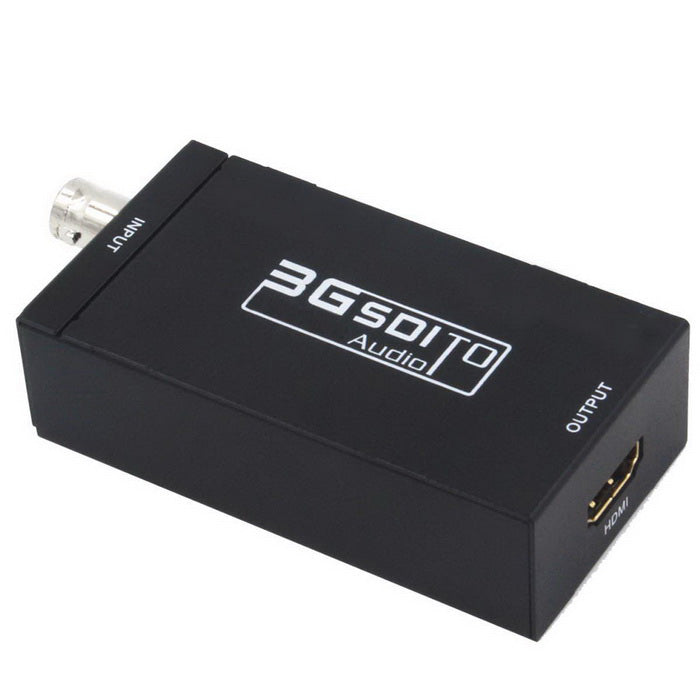

The HD SDI-HDMI converter is a device designed to convert a single HD digital component serial interface (HD-SDI and 3G-SDI) to an HDMI signal. The device integrates an SDI receiver and an HDMI modulator to easily convert HD-SDI signals into HDMI signals while simultaneously embedding SDI audio signals into HDMI signals for simultaneous sound and image transmission.
SDI
The SDI interface is an acronym for Digital Serial Interface. The serial interface is the data word for each bit and the corresponding data is transmitted over a single channel interface. Due to the high data rate of serial digital signals, they must be processed before transmission.
HDMI
HDMI, High Definition Multimedia Interface (English: High Definition Multimedia Interface) is an all-digital video and audio transmission interface that transmits uncompressed audio and video signals. HDMI can be used in set-top boxes, DVD players, personal computers, video games, integrated amplifiers, digital audio and television. HDMI can simultaneously transmit audio and video signals, audio and video signals using the same cable, greatly simplifying system installation.
Application field
It is widely used in the broadcasting room and non-coding fields of TV stations at all levels using SDI signals. It is also widely used in the field of optical transmission using various HDMI interfaces.
Product specifications
Video input signal: HD digital component serial interface (HD-SDI and 3G-SDI) signals
Video output signal: one way HDMI signal output (1080P @ 60Hz)
Input audio signal: embedded in SDI
Maximum working current: 500mA
Power adapter specifications: AC input (50HZ, 60HZ) 100V-240V; output: DC 12V / 1A
Working temperature: ( - 15 to +55 ° C)
Working humidity: 5 to 90% RH (non-condensing)
Size (length * width * height): 80mm × 41mm × 25mm
Weight: 150 grams
Connection and operation:
Connect the signal source and SDI connector to the SDI connector input of this device.
Connect the converter output to the terminal display via an HDMI cable.
Connect a DC 5V / 1A power supply or a 12V power supply to the converter.
Feature:
Support HD-SDI and 3G-SDI
Support full HD 1080P @ 60Hz
Resolution automatic recognition
Audio and image sync output
Easy to install
Main Feature
The performance is very advanced, the input supports the most widely used HDMI1.3 version, and is backward compatible with HDMI1.2 and HDMI1.1 and below. The output supports the industry's highest-end 3G SDI signal and 1.485G SDI HD signal, compatible with all types of SD. -SDI signal.
